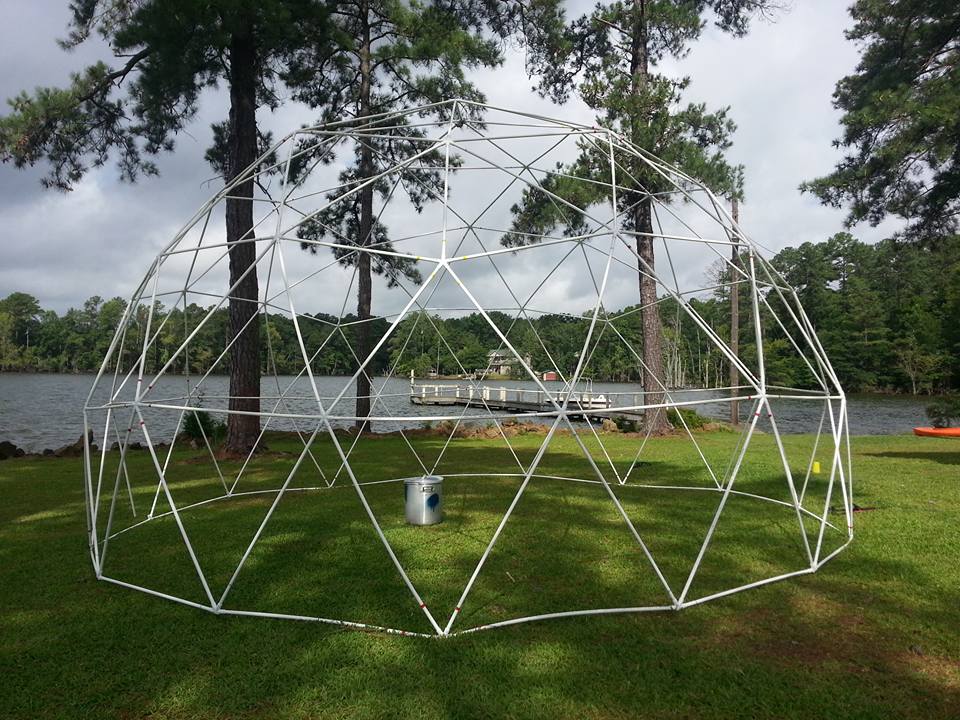

3V 5/9 Geodesic Dome - Standard Hub Kit


This kit is for those who want to build a classic 3V 5/9 dome, and are willing to cut and drill their own struts.  With this kit, you can scale your dome to any size between about 9' in diameter up to 18' in diameter.  Use our Sonostar Standard Dome calculator on the website to get the correct lengths to cut.  These hubs are sized to be used with 1/2" Schedule 40 PVC pipe, available at Home Depot, or any irrigation supply company.  Sonostar hubs are injection molded, with tapered bolt holes, so the bolt heads will be flush when you fasten them together.  All the stainless steel nuts and bolts are included, as well as an illustrated instruction manual and an assembly diagram.

Click the button below to calculate the lengths and quantities of 3V 5/9 standard dome struts:

standard dome calculator

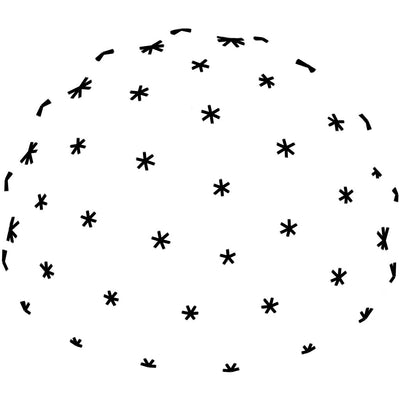

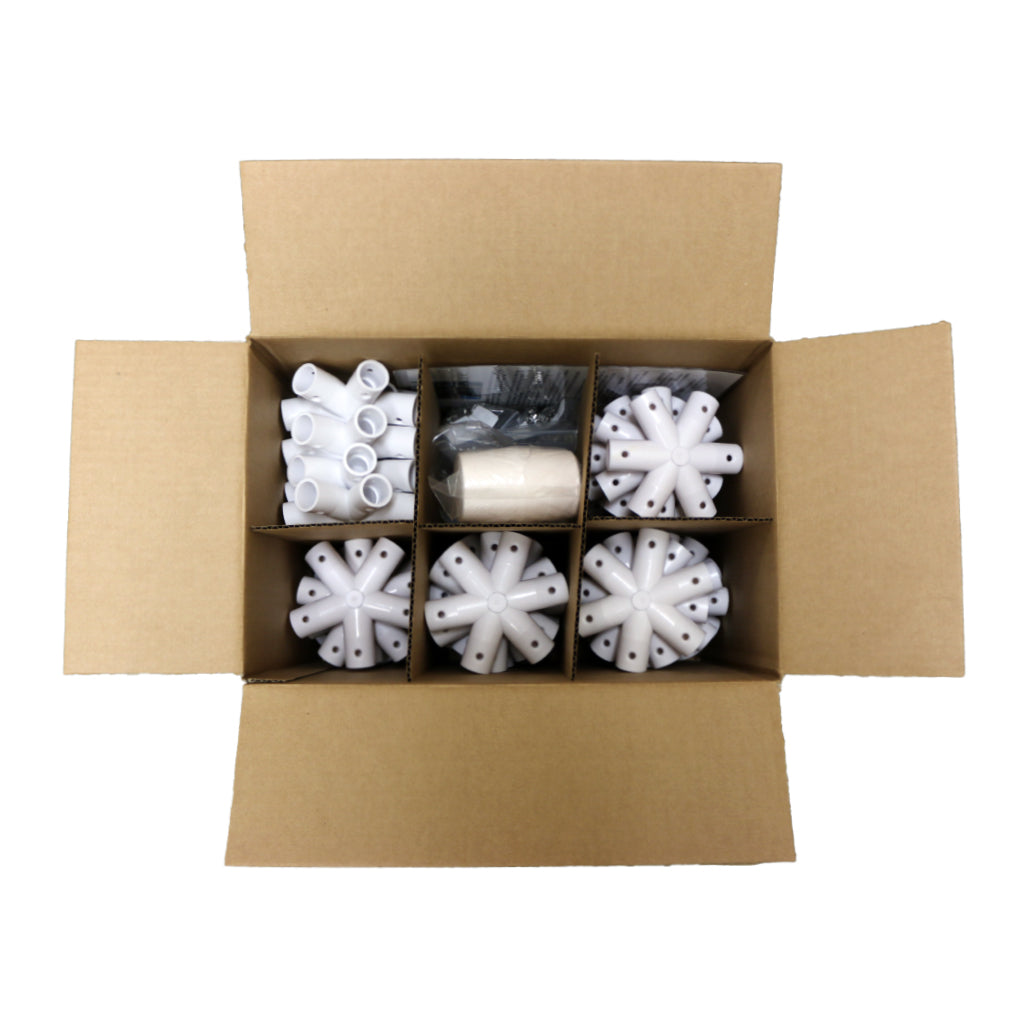

Standard Hub Kit Includes:

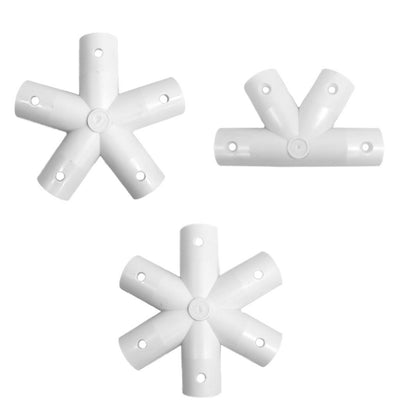

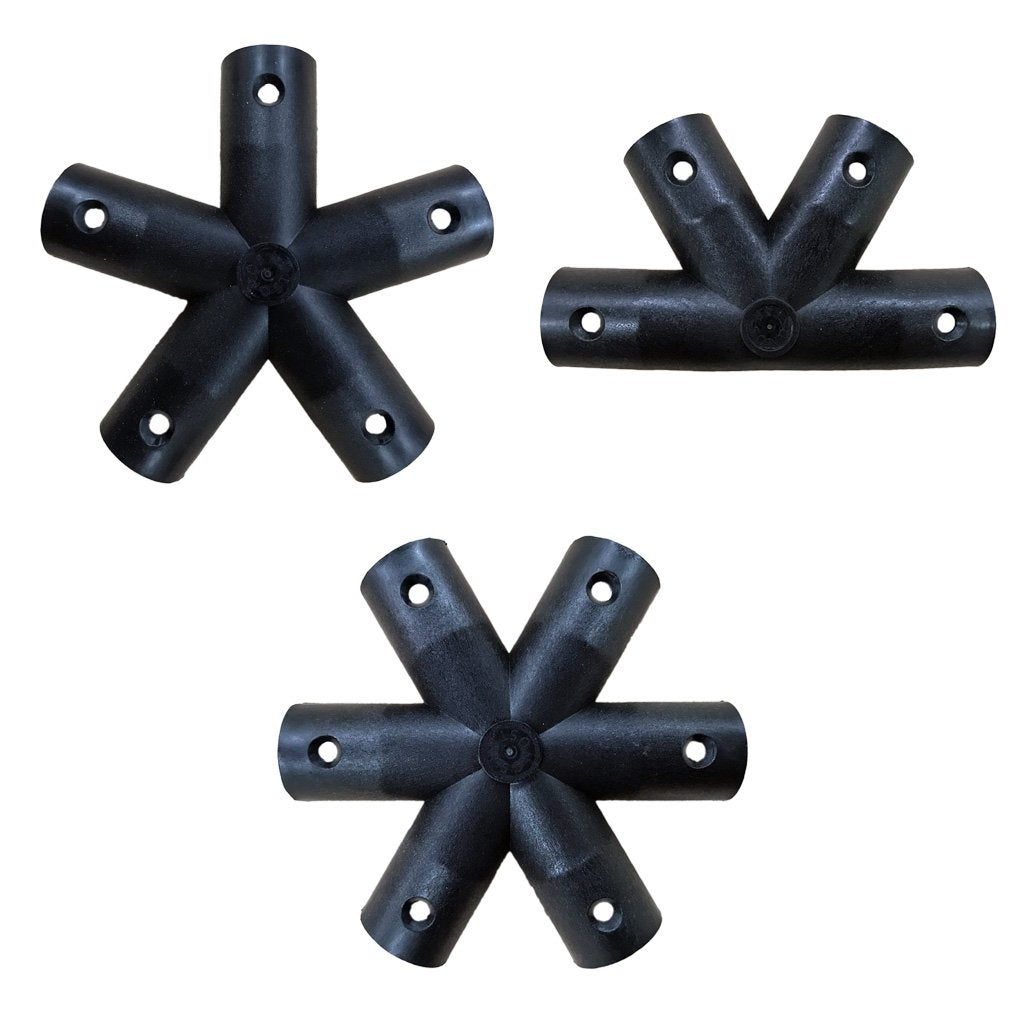

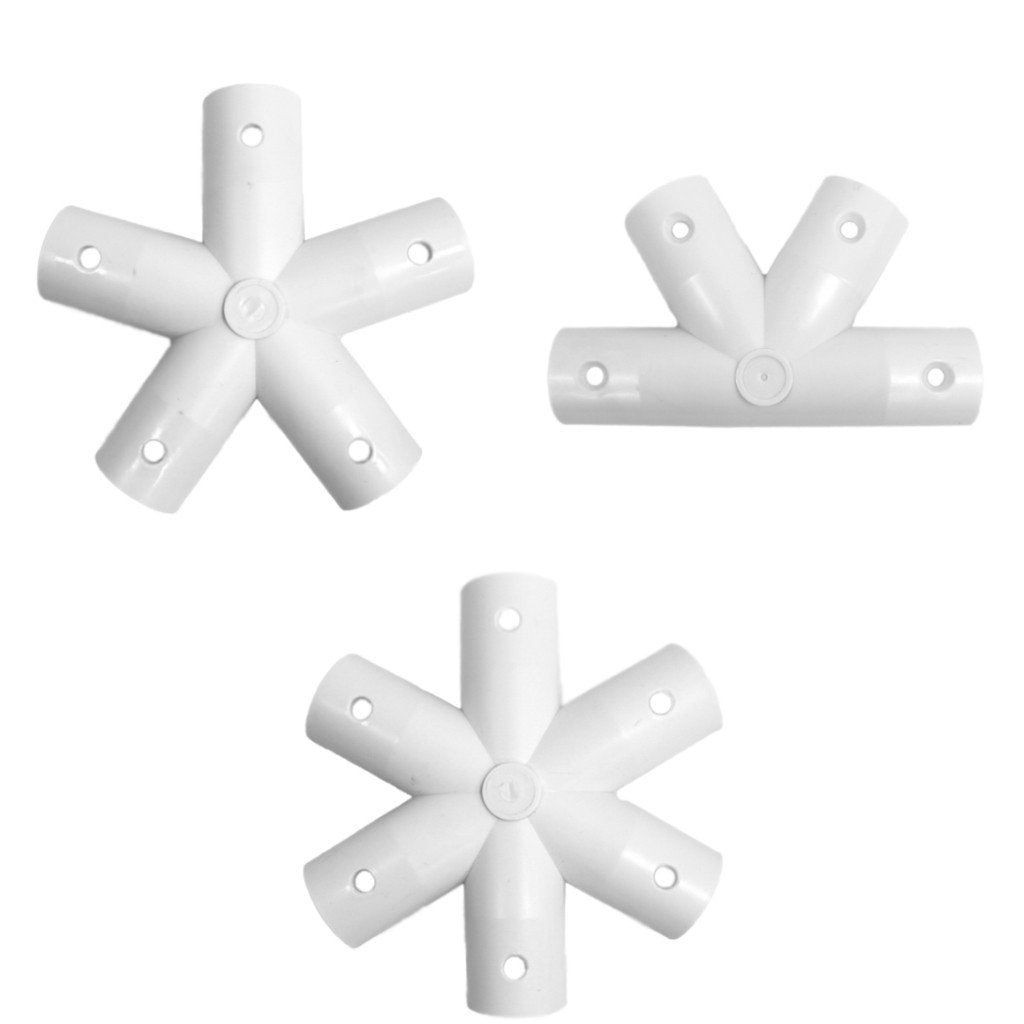

 x15 4-Star Standard Dome Hub Connectors + 1 spare
x6 5-Star Standard Dome Hub Connectors + 1 spare
x40 6-Star Standard Dome Hub Connectors + 1 spare
x330 Machine screws, Phillips oval head, Stainless steel 18-8, #8-32 x 1.25”
x330 Hex lock nuts nylon insert, Stainless steel 18-8, #8-32

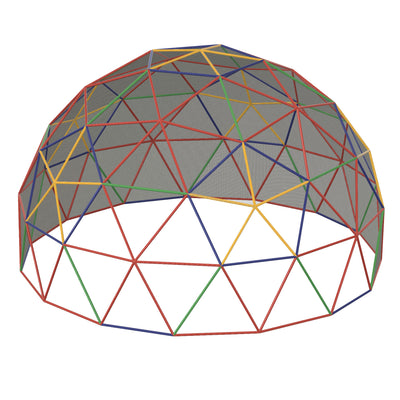

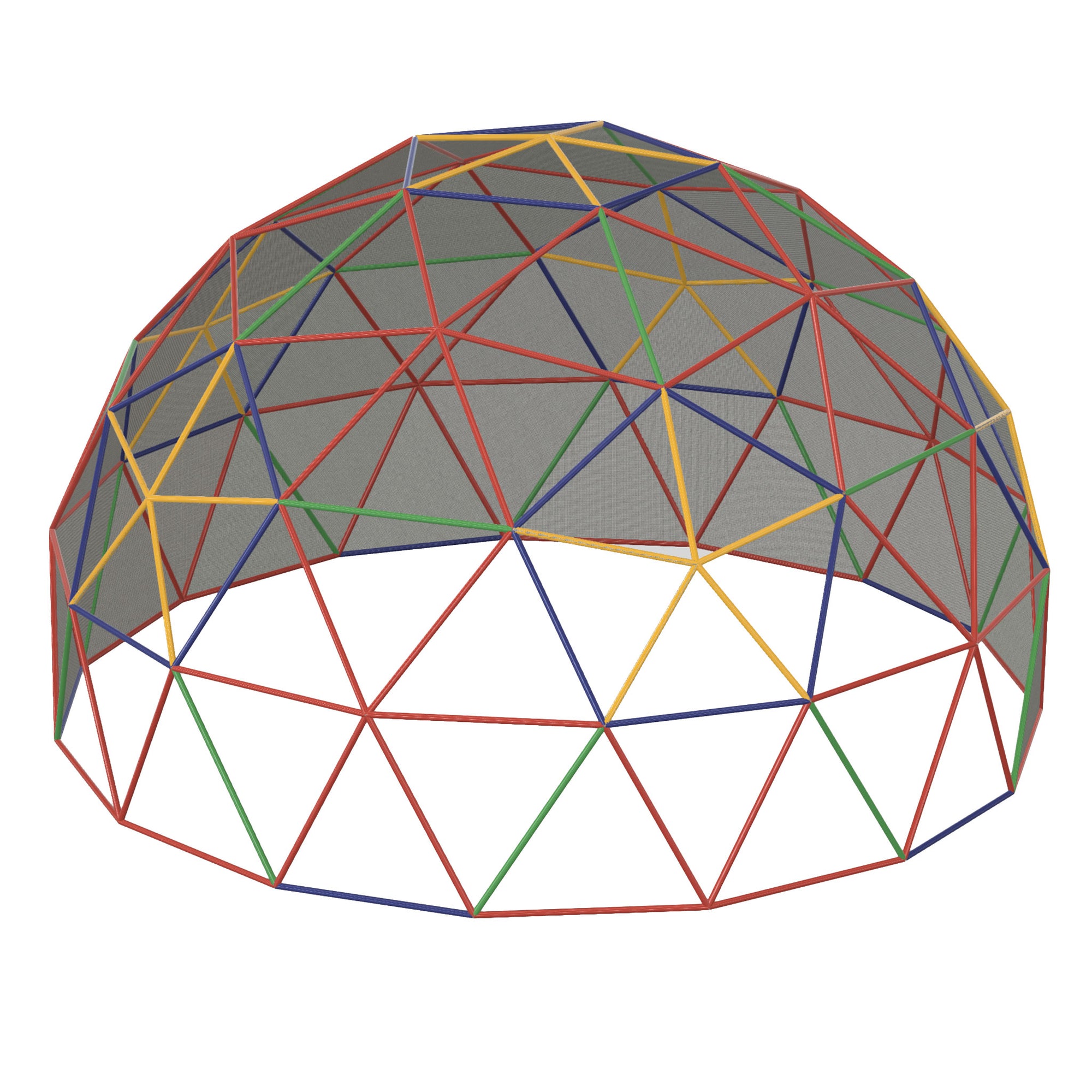

x1 Color Coded Assembly map
x1 Hard rubber mallet
