Choose whether you would like to order just the Basic Hub Kit and cut the struts yourself, or order the Basic Hub Kit together with a set of precut, predrilled, color-coded struts (Hub + Strut Kit).
To complete a Hub + Strut Kit order simply choose from several options based on the diameter of the finished dome.

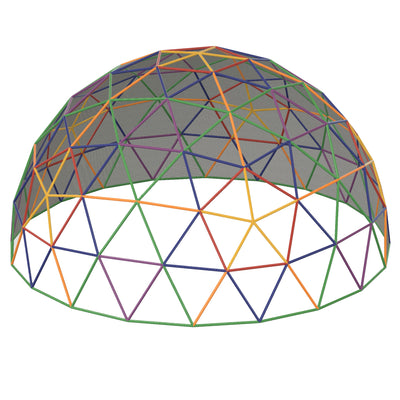

The 4V dome is exactly half of a sphere. As the frequency goes up (2V, 3V, 4V, etc.), the 'roundness' of the dome increases, as does its overall strength. There are six different sized struts in Frequency 4 domes, and you can find those lengths using our Geodesic Dome Calculator. We've seen our kits built into event domes, silo domes, PVC chicken coop domes, greenhouse domes, gazebos and more.
All of our MegaHubs have the holes molded into the parts, so you have the choice to either glue/weld the connections for a more permanent structure, or use nuts & bolts, so that you can assemble and disassemble the dome.

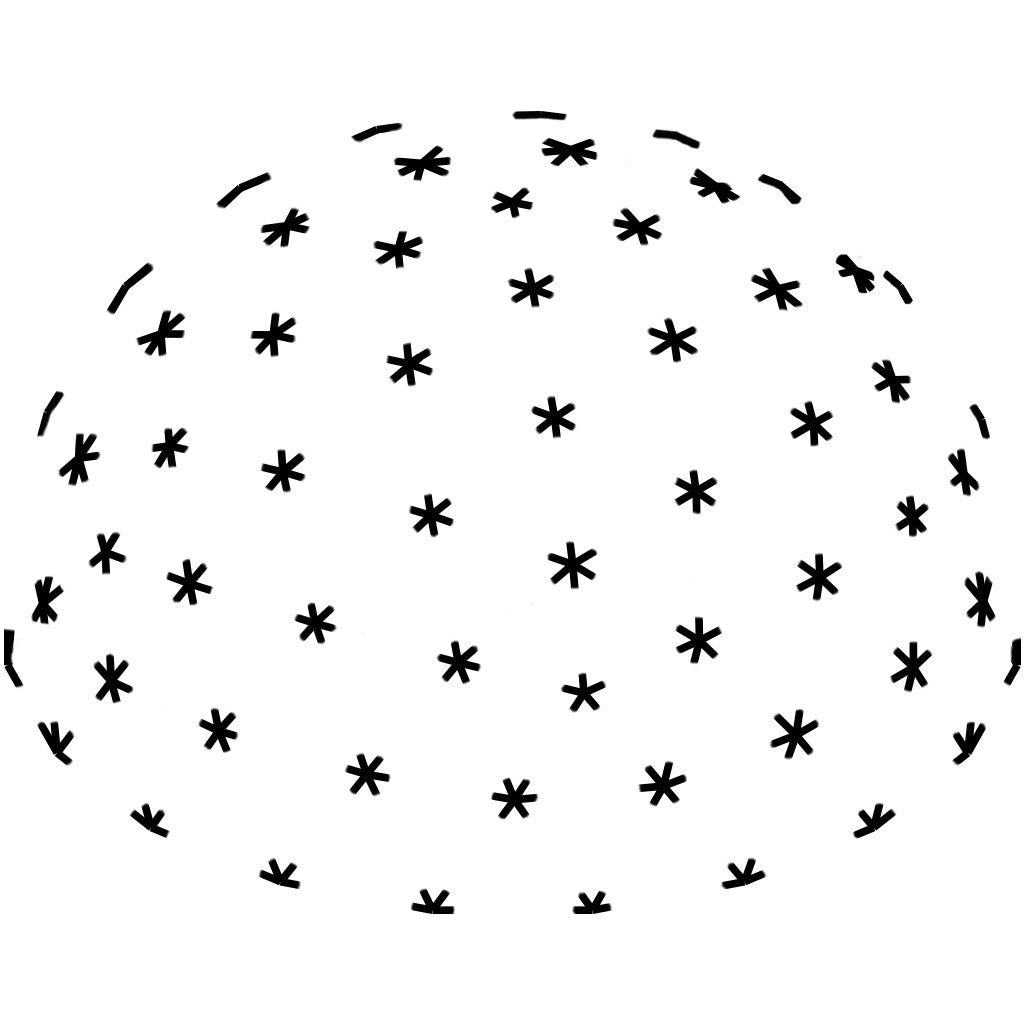

x20 4-Star Sonostar MegaHubs
x6 5-Star Sonostar MegaHubs + 1 Spare
x65 6-Star Sonostar MegaHubs + 2 Spares
x500 Stainless Steel Nuts and Bolts (To connect the hubs to the PVC struts)
x1 Hard Rubber Mallet
x1 Assembly Map and Instructions
x30 Yellow PVC Struts
x30 Red PVC Struts
x60 Blue PVC Struts
x70 Green PVC Struts
x30 Purple PVC Struts
x30 Orange PVC Struts
All of our MegaHubs Connectors are made with injection-molded ABS and have holes in the hubs, so you have the choice to either glue/weld the connections, or use nuts & bolts, or even both, based on your project needs.
